CASTING AUXILIARY PRODUCTS

CASTING AUXILIARY PRODUCTS 2023-06-13 CASTING AUXILIARY PRODUCTS

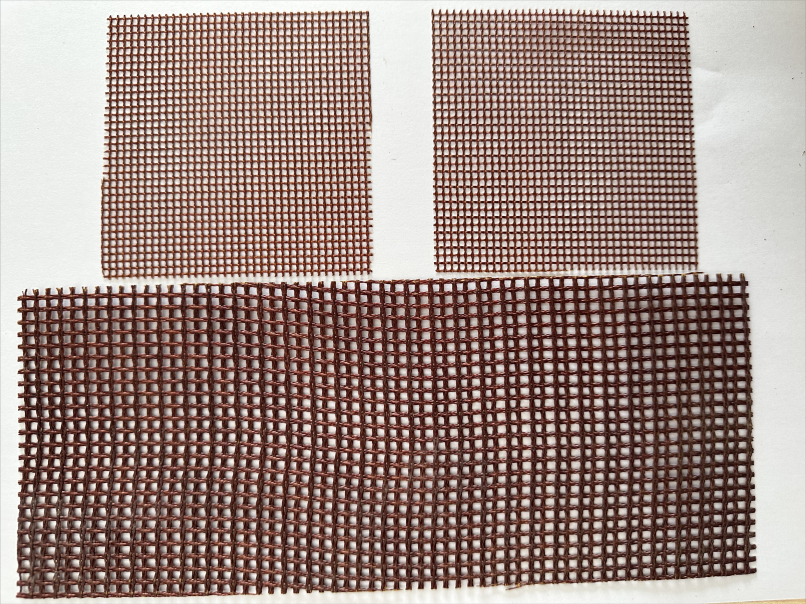

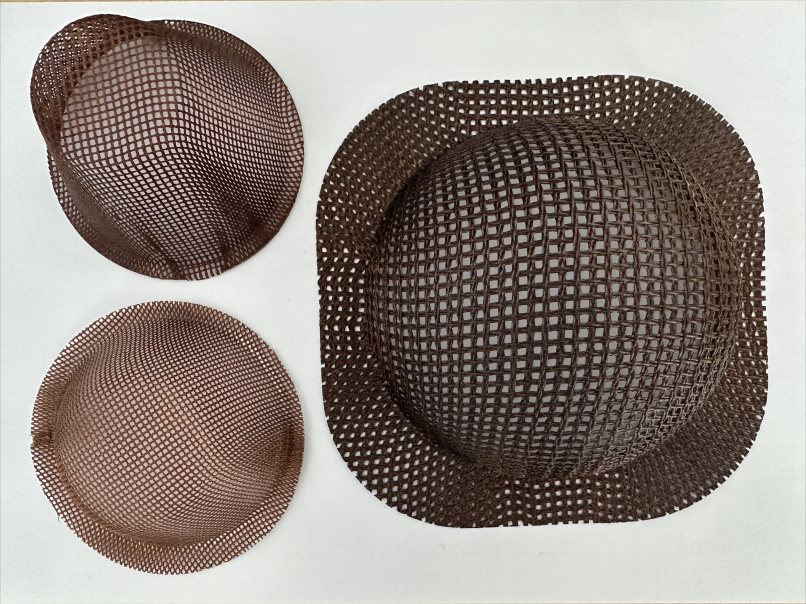

FIBERGLASS MESH FILTER



Fiberglass mesh filter are used for filtration of iron,aluminum,steel and other casting metal liquid.


1686587231395836.png                 1686587232666220.png

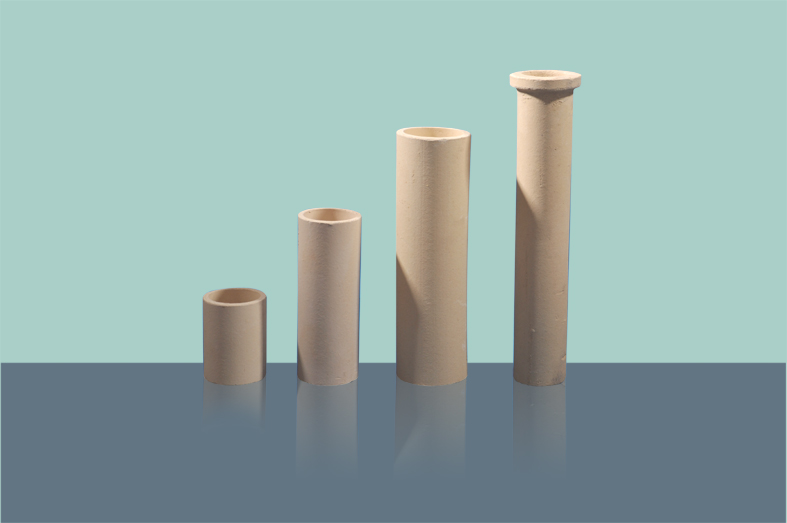

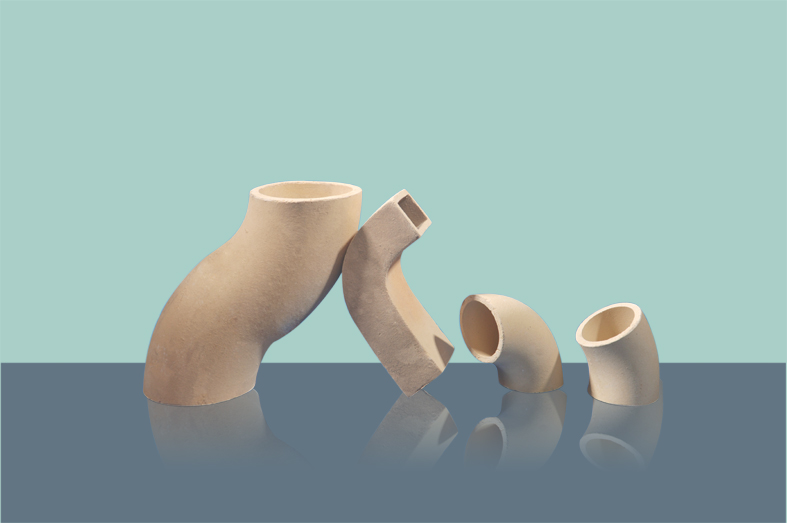

CERAMIC TUBE FOR CASTINGS

This type of product is suitable for resin sand,sodium silicate sand,precoated sand and some other formative technology.It is used for casting high manganese steel,alloy steel.stainless steel,carton steel ,high chromium cast iron,ductile iron,grey iron casting,etc.

1. The appearance requirement and dimension allowable deviation for the ceramic tube:

Item

Index error(mm

Inner diameter

50

Dimensional tolerance

±1.5

50-100

±2

100

±3

Length

300

±2

300

±3

Thickness

5-10

±1

11-20

±2

20

±3

Inner diameter<φ50

Ovality deviation

±1

Inner diameterφ50-φ100

±2

Inner diameter>φ100

±3

Non-critical area diameter

Concavity

5

Length300

Bend

3

Length300-500

4

2. The physical and chemical index for the ceramic sprue tube

Item

Al2O3

Content

%

Refractoriness

0.2Mpa start point temper of refractoriness under load

Reheating linear change

(1400.2h)

Apparent porosity

%

Cold crushing strength.Mpa

Standard

45

1700

1280

+0.2

-1.5

28

30


1686587448707620.png           1686587448953961.png

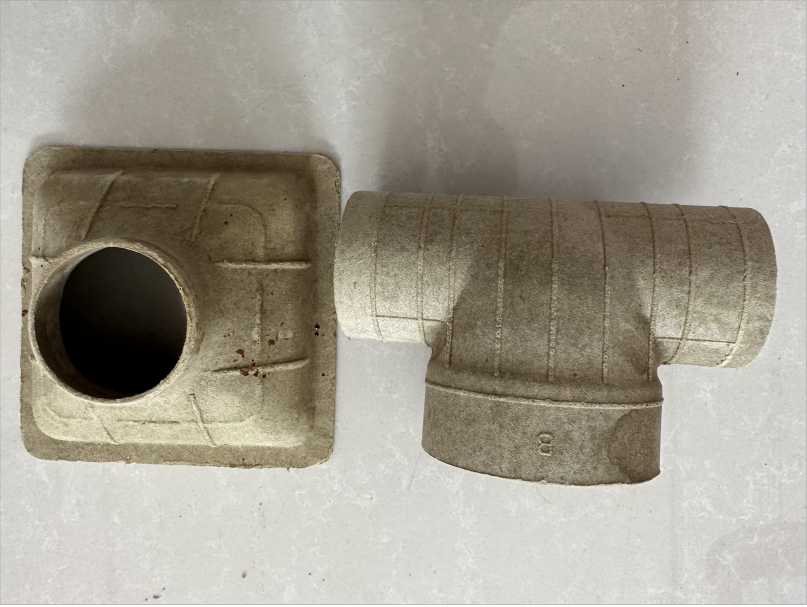

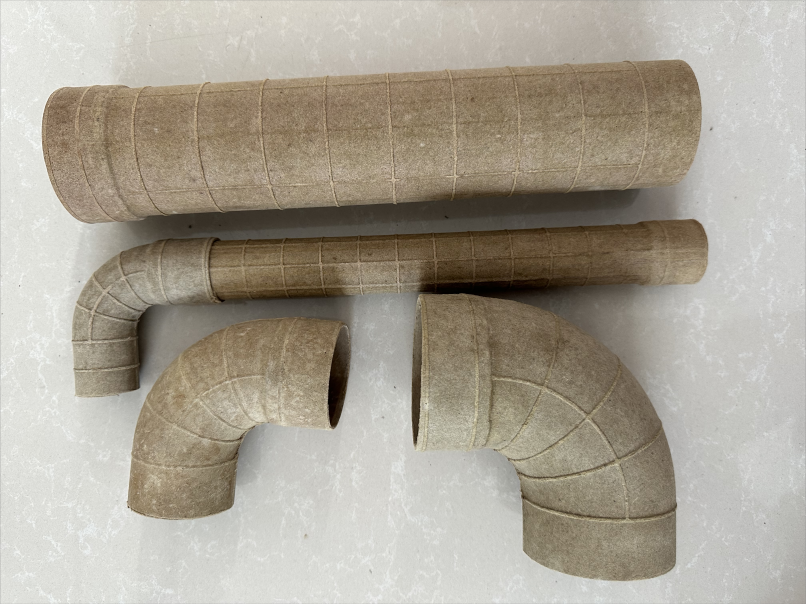

PAPER SPRUE TUBE FOR CASTINGS

Paper tube for casting is Eco-friendly,cost-effective and an ideal replacement of ceramic tube.It can improve casting quality,reduce scrap,improve the quality of reclaimed sand,reduce work intensity.



1686587498906817.png                1686587498763761.png

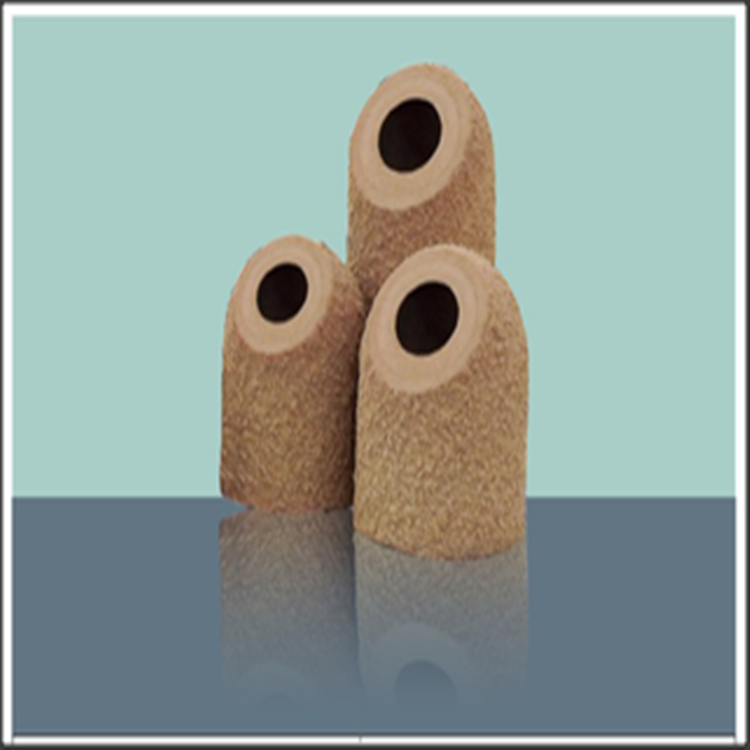

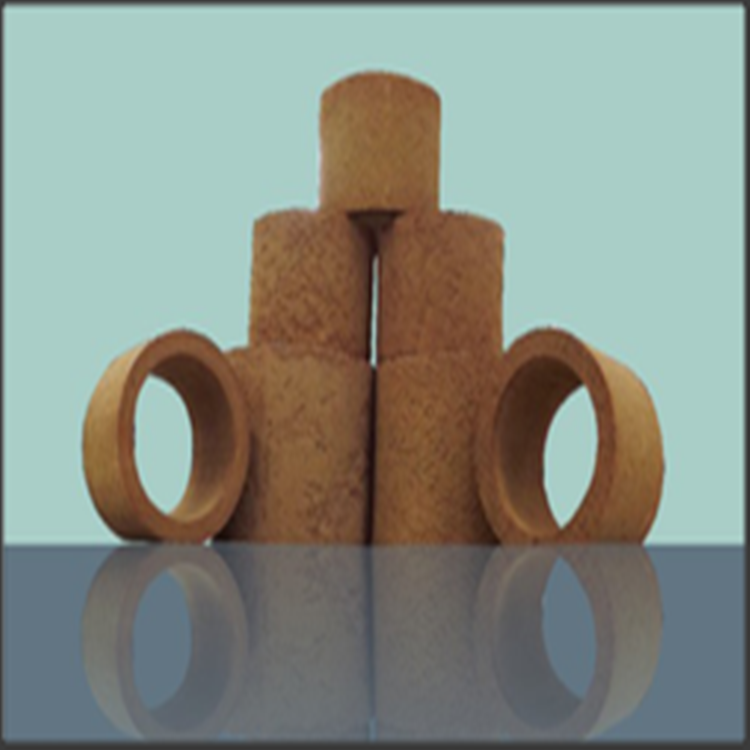

THE EXOTHERMIC INSULATION RISER


The high efficient exothermic insulation riser has low density,high strength and good toughness, which suit for all kinds of black and non-ferrous casting.



1686587542346951.png                1686587543699030.png
